  Question
1

(b) Design a MOD-8 down asynchronous counter.

 This question has 0 answers so far.
0

(e) What are the moore and melay machines? Compare them.

 This question has 0 answers so far.
0

(e) What is the difference between conventional flow chart and ASM chart?

 This question has 0 answers so far.
0

(a) Distinguish Melay and Moore machining.

 This question has 0 answers so far.
0

(c). Convert the following binary number of decimal numbers:

         (i) (101111.1101)2            (ii) (110101.101)2.

 This question has 0 answers so far.
0

(b) State and prove the demorgan theorem.

 This question has 0 answers so far.
0

(a) What are universal gates? Design AND and OR gates using the universal gates.

This question has 0 answers so far.
0

(b) Simply

 This question has 0 answers so far.
0

(a) What is Gray Code? Why is it important?

 This question has 0 answers so far.
0

(f). What are salient features of ASM charts

 This question has 0 answers so far.
0

(f) What are capabilities and limitations of finite state machines?

 This question has 0 answers so far.
0

(b) Convert (A6BF5)16 is to binary.

 This question has 0 answers so far.
0

(a) Convert (444.456)10 to an octal number,

 This question has 0 answers so far.
0

Write short note on:

(b) Homing experiments..

This question has 0 answers so far.
0

Write short note on:

(a) Faults models for sequential circuits.

 This question has 0 answers so far.
0

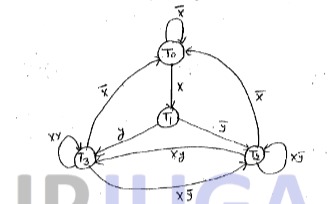

For the state diagram of the control circuit in figure-I below. Obtain the ASM chart and design the circuit using multiplexers.



 This question has 0 answers so far.
0

Explain the procedure of state minimization using the merger graph and merger table.

 This question has 0 answers so far.
0

Design a sequence detector that produces an output 'l' whenever the non overlapping sequence 1011 is detected.

 This question has 0 answers so far.
0

 (g) What is the advantages of Master Slave FF.

This question has 0 answers so far.
0

(a) Simply the expression Y =  (0,1,4,5, 6, 8, 9, 12, 13, 14) using the K-map.

 This question has 0 answers so far.
0

(b) Find the minimal sum of products for the Boolean expression:

f(w,x,y,z) =   (1,3,4,5,9,10,11) + d 6,8) using the Quine-Mccluskey method.

 This question has 0 answers so far.
0

(a) Design a 4-Bit magnitude comparator.

 This question has 0 answers so far.
0

(b) Design and explain the octal to binary encoder.

 This question has 0 answers so far.
0

(a) Design and explain the operation of TTL NOR gate.

 This question has 0 answers so far.
0

(b) What are the advantages of CMOS logic? Discuss.

 This question has 0 answers so far.
0

(a) Design a synchronous MOD-10 counter.

 This question has 0 answers so far.
0

(6) What are the different type of shift registers? Explain.

 This question has 0 answers so far.
0

Design a sequence detector that produces an output '1' whenever the non overlapping sequence 1011 is detected.

 This question has 0 answers so far.
0

Draw the merger graph and obtain the set of maximal compatibles for theincompletely specified sequential machine whose state table is given below:



 This question has 0 answers so far.
0

Write short note on:

(a) Homing experiment

 This question has 0 answers so far.
0

(b) Fault models

 This question has 0 answers so far.
0

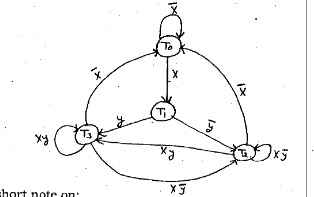

For the state diagram of the control circuit shown below:

(b) Design the circuit using multiplexers.



 This question has 0 answers so far.
0

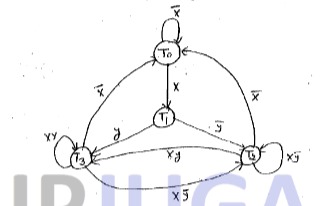

For the state diagram of the control circuit shown below:

(a) Obtain the ASM chart.



 This question has 0 answers so far.
0
Explain Capabilities and limitations of finite state machines. This question has 0 answers so far.
0
Realize AND, OR and NOT gate using only NAND gate. This question has 0 answers so far.
0
Determine the value of base x if (211)x=(152)s . This question has 0 answers so far.
0
Determine the value of base x if (193)x=(623g This question has 0 answers so far.
0
Differentiate between Moore and Mcaly machines. This question has 0 answers so far.
0
What do you mean by Synchronous and Asynchronous circuits? This question has 0 answers so far.
0
Implement a full subtractor using 8:1 Multiplexer. This question has 0 answers so far.
0
Explain priority encoder. This question has 0 answers so far.
0
Obtain the minimal expression using Quine-McCluskey Method F(A,B,C,D)-Em(1,5,6,12,13,14)+d(2.4) This question has 0 answers so far.
0
What is Race-Around condition? And how is it overcome in JK Flip Flop.Explain with diagram. This question has 0 answers so far.
0
Design a Mod-5 synchronous counter using JK flip flop. This question has 0 answers so far.
0
Explain different kinds of faults encountered in digital circuits. This question has 0 answers so far.
0
Explain Homing experiment in detail with example. This question has 0 answers so far.
0
Convert JK flip flop to T flip flop. This question has 0 answers so far.
0
Draw an ASM Chart for the synchronous circuit having following description: The circuit has control input C, clock and outputs x,y,z. If C=1, on every clock rising edge the code on outputs x,y,z changes from 000->010->100->110-000 and repeats. This question has 0 answers so far.
0
Draw an ASM Chart for the synchronous circuit having following description: The circuit has control input C, clock and outputs x,y,z. If C=0, the circuit holds the present state. This question has 0 answers so far.
0
Prove that (A+B'+AB) (A+B')(A'B)=0 This question has 0 answers so far.
0
Design a 4 bit odd parity generator. This question has 0 answers so far.
0
Explain look ahead carry adder. This question has 0 answers so far.
0
Write short note on Partition Technique. This question has 0 answers so far.
0
Write short note on TTL Logic Family. This question has 0 answers so far.
0
Write short note on Shift Register. This question has 0 answers so far.
0

c) Simply the expression y =  (3,4,5,7,9,13,14,15) using k-map method.

 This question has 0 answers so far.
0

(d) Discuss types of shift registers.

 This question has 0 answers so far.
0

(g) What is PAL and PLA? Explain.

 This question has 0 answers so far.
0

(c) Describe the circuit and operation of single bit magnitude comparator.

 This question has 0 answers so far.
0

(a) Find the minimal sum of products for the Boolean expression f = (1,2,3,7,8,9,10,11,14,15).

 This question has 0 answers so far.
0

(b) Design a 4-bit carry look ahead udder.

 This question has 0 answers so far.
0

(a) Explain, with the aid of circuit diagram, the operation of a TTL-3 input NAND gate.

 This question has 0 answers so far.
0

(b) What are the advantages of CMOS Logic.

 This question has 0 answers so far.
0

(a) Design a Delay Flip flop using S-R flip flop.

 This question has 0 answers so far.
