Process Equipment Design And Drawing

	Question
0	Design 1 - 2 type shell and tube heat exchanger to cool 27.8 kg/sec of methyl alcohol from 95°C to 40°C using water as coolant Water is heated from 25° to 40°C. Use tubes of 16 BWG thickness having an outer diameter of 1 inch, length of 16 feet arranged on triangular pitch. This question has 0 answers so far.
0	Estimate the pressure drop on tube side and shell side. This question has 0 answers so far.
0	Complete the mechanical design. This question has 0 answers so far.
0	Draw to the scale the sectional front view of heat exchanger. This question has 0 answers so far.

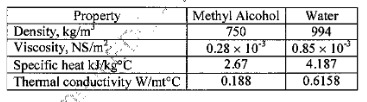

0	Draw the tube sheet layout. Properties of the fluid at average temperature are as follows: This question has 0 answers so far.
0	Design a bubble cap distillation column to separate 150 kmol/hr of a feed solution of benzene-toluene mixture containing 44% of benzene. It is required to get an overhead product containing 97% of benzene and bottom product containing 98% toluene. The feed is at its bubblo point. A reflux ratio of 3.5 is to be used. The equilibrium data for benzene and toluene system is as given below. i) Draw proportional sketch showing sectional elevation with all details. This question has 0 answers so far.
0	ii) Draw sectional top view of column. This question has 0 answers so far.
