  Question
0

(iii) Synchros

 This question has 0 answers so far.
0

Explain the following:-

b) Tacho generators

 This question has 0 answers so far.
0

Answer the following in brief:-

(j) What is difference between Compensator and Controller?

This question has 0 answers so far.
0

Answer the following in brief:-

(i) What is Breakway point and Break-in point in Root locus?

This question has 0 answers so far.
0

Answer the following in brief:-

(h) What do you mean by Routh Hurwitz Stability?

This question has 0 answers so far.
0

Answer the following in brief:-

(g) What is significance of Gain Margin and Phase Margin?

This question has 0 answers so far.
0

Answer the following in brief:-

(f) What are the differences between Time Domain and Frequency Domain analysis?

This question has 0 answers so far.
0

Answer the following in brief:-

(e) What do you mean by Type and Order of transfer furiction? Explaini ts significance.

This question has 0 answers so far.
0

Answer the following in brief:-

(d) Why step, ramp, impulse and parabolic signals are considered as test signal?

This question has 0 answers so far.
0

Answer the following in brief:-

(c) What is difference between minimum and non minimal phase system?

This question has 0 answers so far.
0

Answer the following in brief:-

(b) How impulse response and transfer function of a system are related?

This question has 0 answers so far.
0

Answer the following in brief:-

(a) Draw block diagram of closed loop control system, and explain its components.

This question has 0 answers so far.
0

Explain the following:

a) PID Controllers

 This question has 0 answers so far.
0

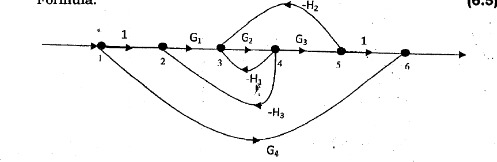

(a) Obtain transfer function of following system using Mason Gain Formula.



 This question has 0 answers so far.
0

(ii) Design of lag-lead compensator by Bode Plot

 This question has 0 answers so far.
0

 Write short notes on:

(i) Stepper motor

 This question has 0 answers so far.
0

b) Give comparative analysis of P, PI, PID Controller.

 This question has 0 answers so far.
0

Determine the resonant frequency Wr resonant peak Mr bandwidth for the system whose transfer function is given by and for a unity feedback control system given by


 This question has 0 answers so far.
0

(b) Explain Nyquist Stability Criteria with an example.

 This question has 0 answers so far.
0

(a) Obtain Root Locus plot for   H(s)=1

Comment on significance of Root Locus Plot.

 This question has 0 answers so far.
0

(b) Draw polar plot for

 This question has 0 answers so far.
0

(a) Draw Bode plot for

Find G.C.F, P.C.F, G.M and P.M

 This question has 0 answers so far.
0

(b) Obtain Steady State Error for Type-1 System for Step, Ramp and Parabolic inputs.

 This question has 0 answers so far.
0

(a) For second order system with unit step input, derive expression for

     (i)Rise time, (ii) Peak time, and (iii) Max overshoot.



 This question has 0 answers so far.
0

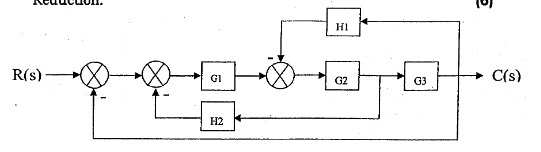

(b) Obtain overall transfer function of following system by Block Diagram Reduction.



 This question has 0 answers so far.
